YG
1-1D/ 1-1DP/ 1-1DL Glass Drilling and Fetching Machine
|
|
Pneumatic Clamping, Drilling
or Fetching by the upper and lower drill-bits automatically.
High efficiency and easy operation. Installed power
1.7 -2.2 kw. Occupancy : 1.65m X 2.6m. Model YG1-1DL
/ 1-1 Dare equipped with pneumatic driving platform
to support large size glass. Drilling diameters 4mm
-220mm thickness: 3mm-30mm.Drilling centre to vertical
column distance: YG1-1D:1030m.YG1-1DL : 1230mm.
|
|
|
YG1-1DP drilling diameters
3mm - 220mm, suitable to process fashionable Glass Bowls
and Wash Basin Counters.
|
|

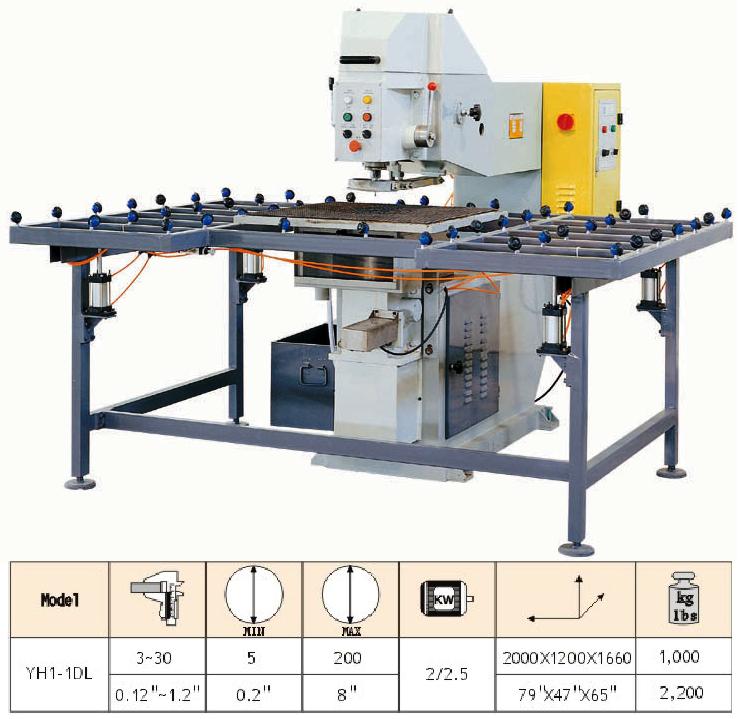

YH
1-1DL Glass Drilling Machine
|
|
|
Glass is
fixed and held by pneumatic unit. The hole is
drilled by upper and lower drill bits successively.
It is equipped with a pneumatic table, which
supports large size glass. The distance between the
centre of drilling hole and vertical column is
1230mm. High efficiency and easy operation.
|
|
Drilling hole diameter:
5mm-200mm; Glass thickness: 3mm-30mm; Occupancy: 1.65m X
2.6m. |
|

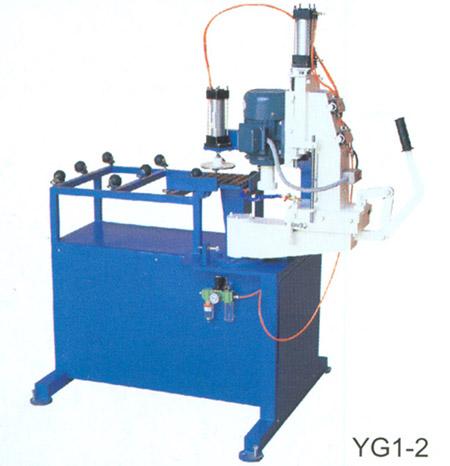

YG
1-2 Glass Corner Edging Machine
|
|
Pneumatically suck the
glass to grind circular edge, flat edge and shape
edge at angle parts of flat glass corner. Equipped
with 1-2 grinding wheels to grinding and polishing
glass. Grinding wheel rises and drops pneumatically.
Installed power : 1.5 kw, Occupancy : 1m X 1m.
|
|
|
|
 |
|
|
