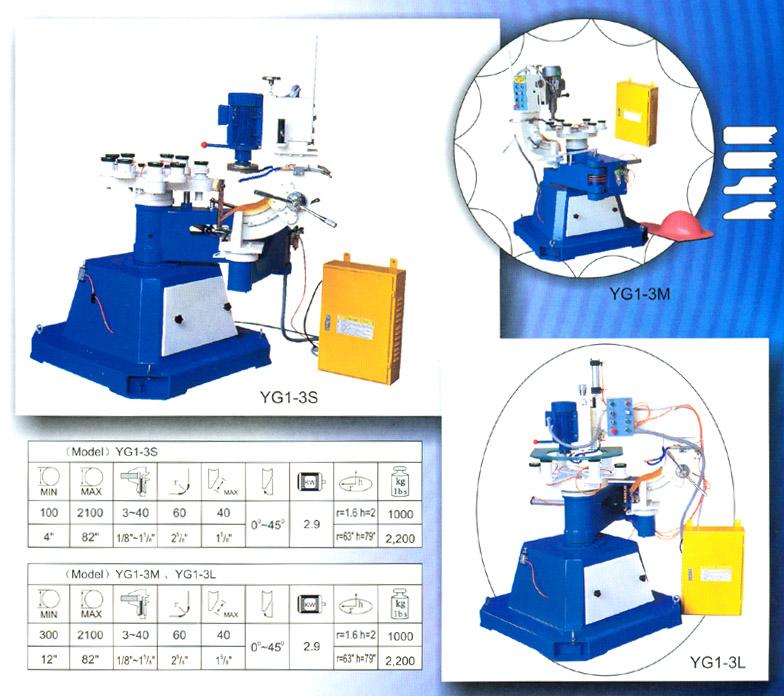

1- 3S / M / L Glass Shape/ Rhombic Shape/Rhombic Shape
and Inner Circle Grinding Machine
|
|
YG1-3S can process peripheral
on different shape glass. Equipped with three wheels
to perform rough, fine grinding and polishing. Process
different edge according to different grinding wheels.
Gear system is adjustable according to bevel requirement.
The pneumatically controlled wheels moved vertically.
|
|
| With the functions of YG1-3S,
YG1-3M can also process the popular wavy rhombic mirror
with mould.
YG1-3L combine with shape
edging machine and inner circle machine. It can grind
the inner circle of 100mm-500mm diameter.
The above machine process
dimensions: 300mm-2100mm. (YG1-3S can process min diameter
100mm). Installed power : 2.9kw occupancy : 3m X3m.
|
|

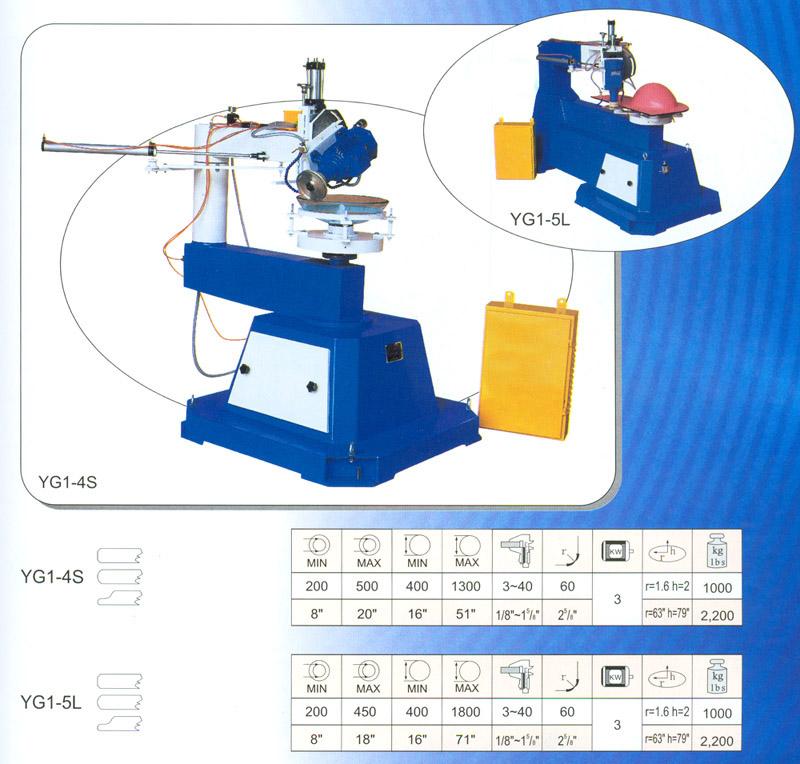

YG1-4S/L
& YG1-5S/L Glass Inner And Outer Circles Grinding
Machine
|
|
|
Pneumatically revolve to process glass outer circle/
oval 400mm-1300mm.or inner circle/ oval 200mm-500mm.
and it can also grinding and polishing the edge of glass
washing basin. Installed power : 3kw, Occupancy : 2.5m
X 2.5m.
YG1-5L, its long arm permit it process glass outer
circle : 400mm X1800mm. And double inner circles 200mmX450mm.
|
|

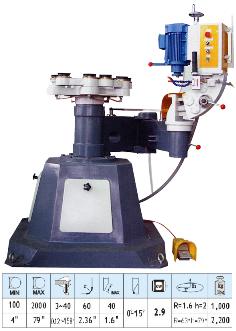

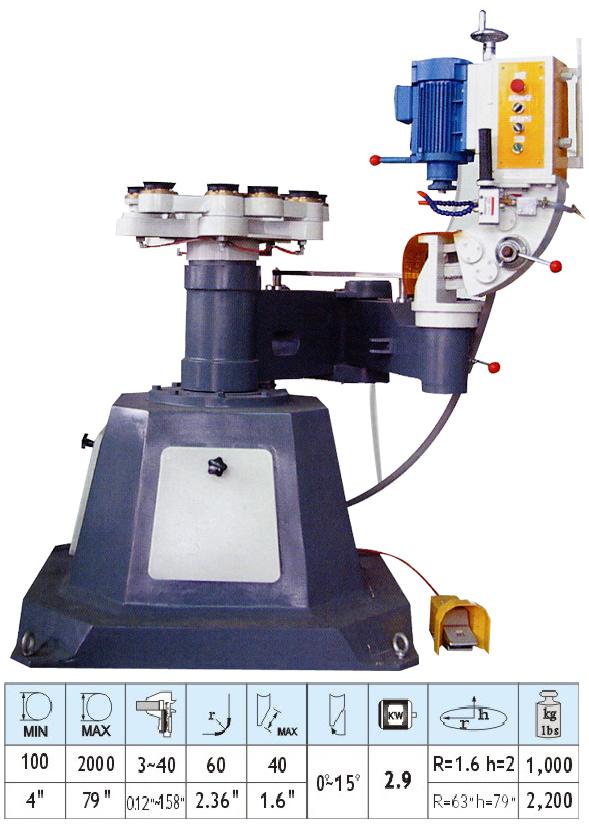

YH1-6 Glass Shape
Grinding / Bevelling Machine
|
|
Suitable for round, oval and shape glass bevelling,
edging and polishing, different shape edge according to
different grinding wheels. The machine adopted high
strength iron casting, enhance its rigidity and steady
precision. Five starred plate and arms are perfect water
proof Brake setting is avoid occurring diastema when the
worm shaft is running continuously. Easy use and
convenient maintenance due to the advanced Japan vacuum
generator, in addition high quality element make this |
|
|
machine becomes an
ideal corollary equipment for glass process. |
|

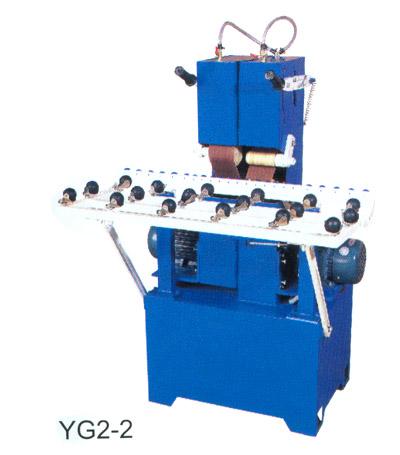

YG2-2
Glass Belt Grinding Machine
|
|
|
Equipped with two motors
which revolve two sanded belt to process glass edge,
manual transmit, aris grinding can be finished swiftly.
Suitable to process glass
doors, windows and the glass before tempering. Glass
dimension: 400mm-2000mm, installed power: 3kw, Occupancy
: 1m X 2m.
|
|
|
 |
|
|
