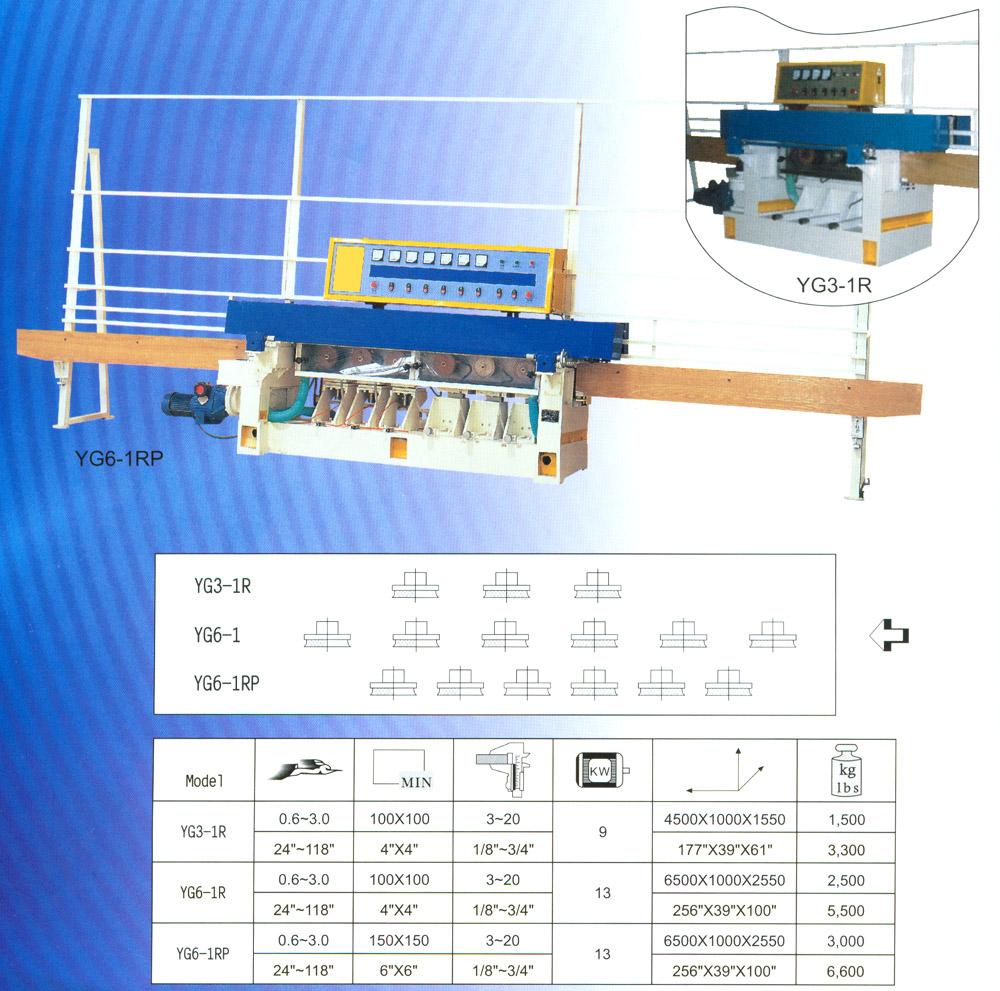

YG6-1R/6-1RP/3-1R
Glass Straight-Line Round edge, OG Edging Machine
|
| Processing round or OG
edge according to different shape grinding wheels adjust
speed with step less regulator: YG6-1R/ YG6-1RP equipped
with 6 grinding wheels, Installed power: 13.5kw. Through
YG3 -1R with 3 grinding wheels; Installed power : 9kw.
grinding speed: 0.6m-3m/m, glass thickness: 3mm -28mm,
Min size : 100mm X 100mm.
|
|
|

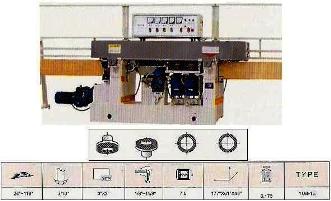

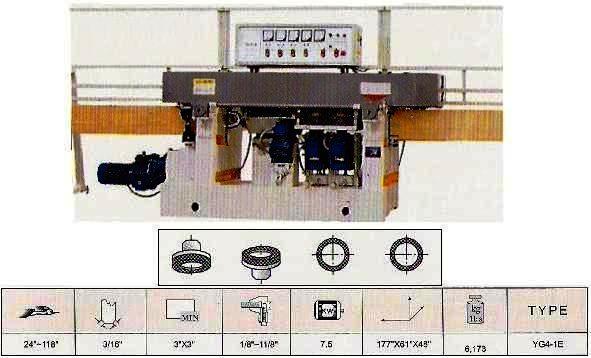

YG4-1E
Glass Straight-Line Edging Machine
|
|
|
Adopts
two grinding wheels and two polishing wheels which process
the flat edge. And another two grinding wheels and two
polishing wheels on both side which process 45° bottom
angle, Adjust speed with step less regulator.
|
| Installed
power : 13.8kw, maximum grinding capacity :3mm, grinding
speed: 0.6-3m/min. Glass thickness: 3mm-28mm. Occupancy:
6.5mX1.5m, glass min size : 80mm X80mm. |
|

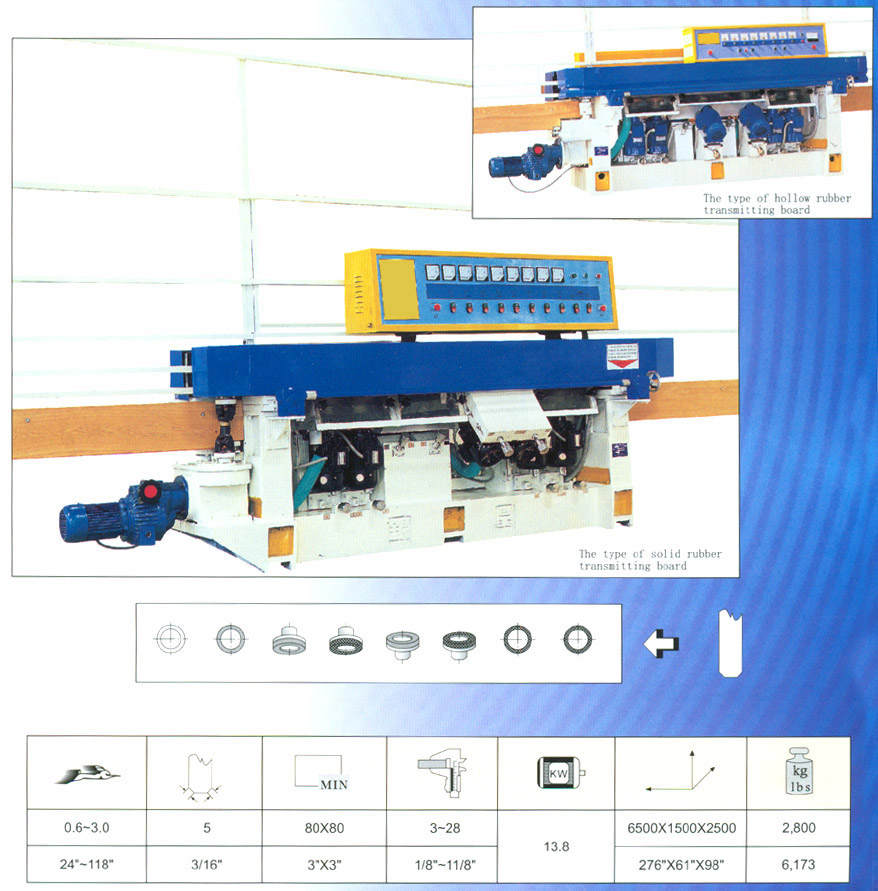

YG8-1E
Glass Straight-Line Edging Machine
|
| Adopts
two grinding wheels and two polishing wheels which process
the flat edge. And another two grinding wheels and two
polishing wheels on both side which process 45° bottom
angle, Adjust speed with step less regulator. Installed
power : 13.8kw, maximum grinding capacity :3mm, grinding
speed: 0.6-3m/min. Glass thickness: 3mm-28mm. Occupancy:
6.5mX1.5m, glass min size : 80mm X80mm. |
|
|

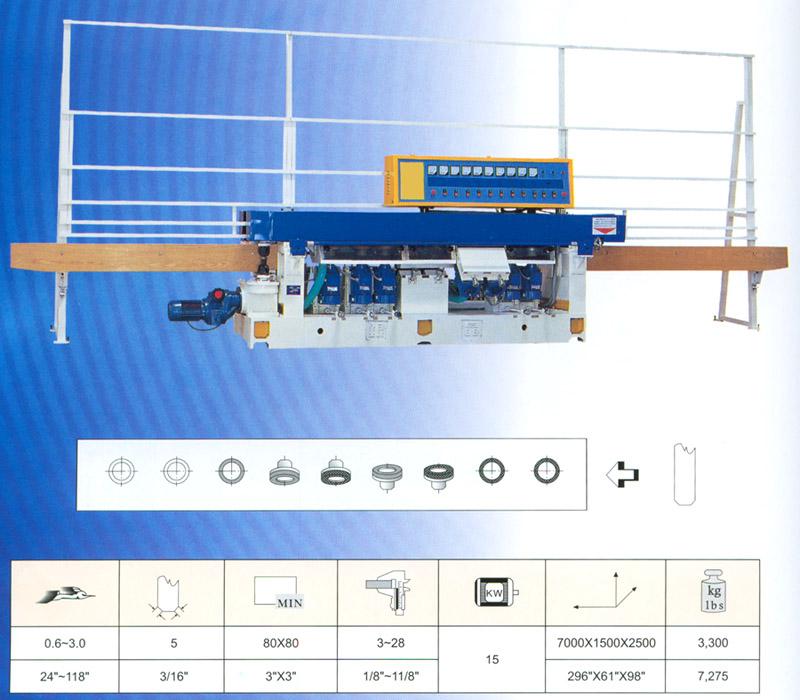

YG9-1E
Glass Straight-Line Edging Machine
|
|
|
The function
of first five grinding wheels are rough, fine grinding,
and polishing the flat edge, and there are two grinding
wheels on both sides which process 45° bottom aris.
Solid fixture transmit according to the step less regulator.
Front aris wheels moved with the front beam synchronously
when processing various thickness of glass.
|
|
Being stable when processing large size glass. High precision
and easy operation. Installed power : 15kw, glass thickness
: 3mm-28mm, min size : 80mm occupancy : 1.5m X 7m. (Note
: with crane and suction plates when processing large
glass over 3mX3m). |
|

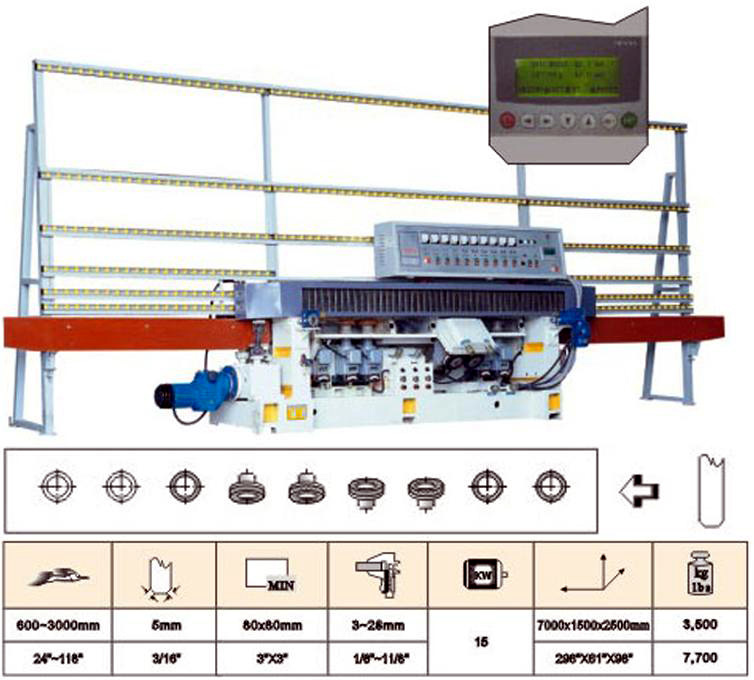

YG9-1EP
Glass Straight-Line Edging Machine With
PLC
|
|
This machine is controlled by PLC with automatic and
manual two operating models. It can preset the glass
thickness and the parameters can be displayed on a LCD
access unit. The function of first five grinding wheels
are rough, fine grinding and polishing the flat edge and
there are two grinding wheels on both sides which
process 45 bottom aris.
Solid fixture
|
|
transmit
according to the step less regulator. Front aris wheels
moved with the front beam synchronously when processing
various thickness of glass. Being stable when processing
large size glass. High precision and easy operation.
Installed
power:15kw,glass thickness:3mm-28mm,min size:80mm
occupancy:1.5m × 7M.(Note:with crane and suction plates
when processing large glass over 3m × 3m). |
|
|
 |
|
|
